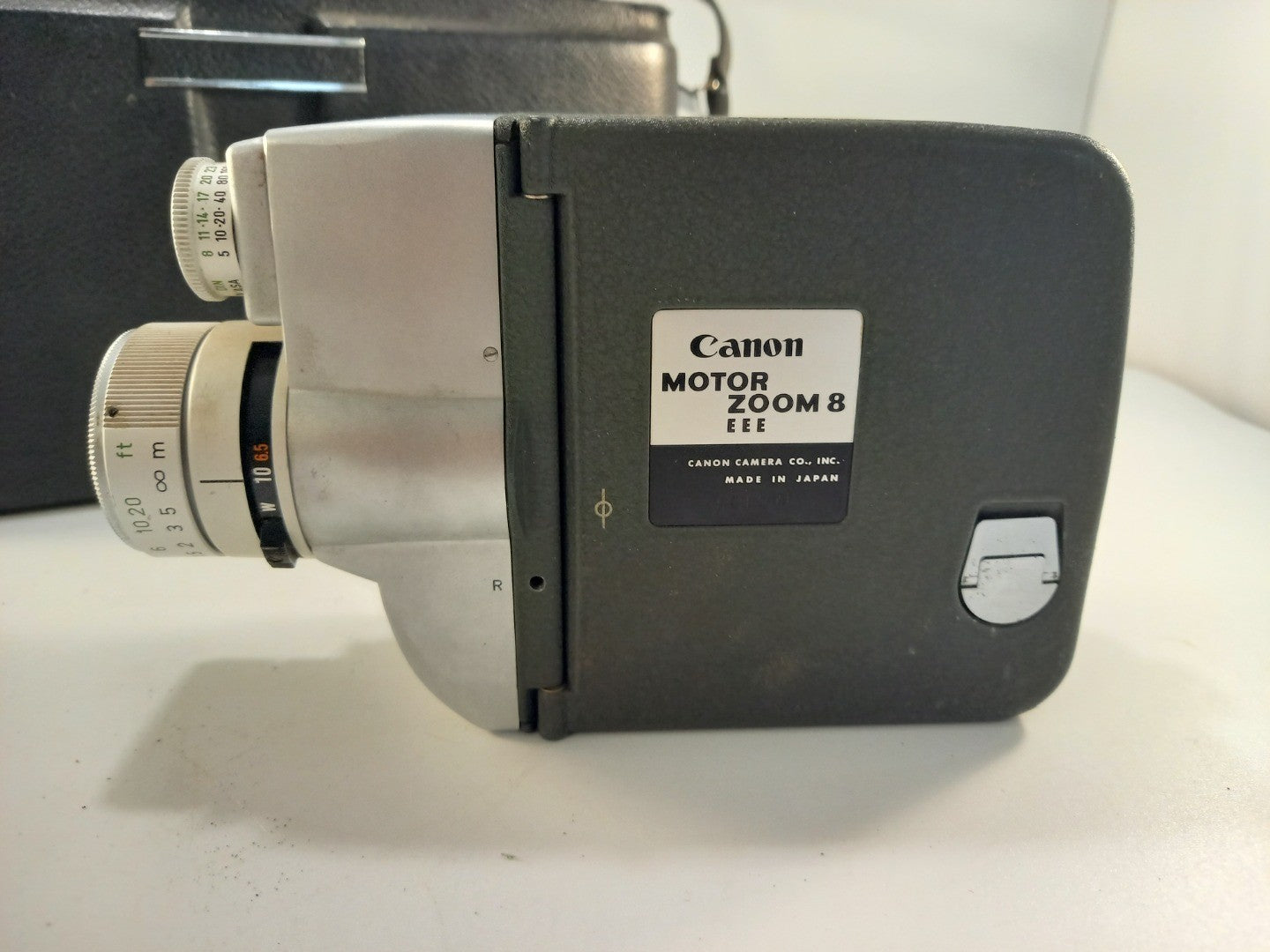

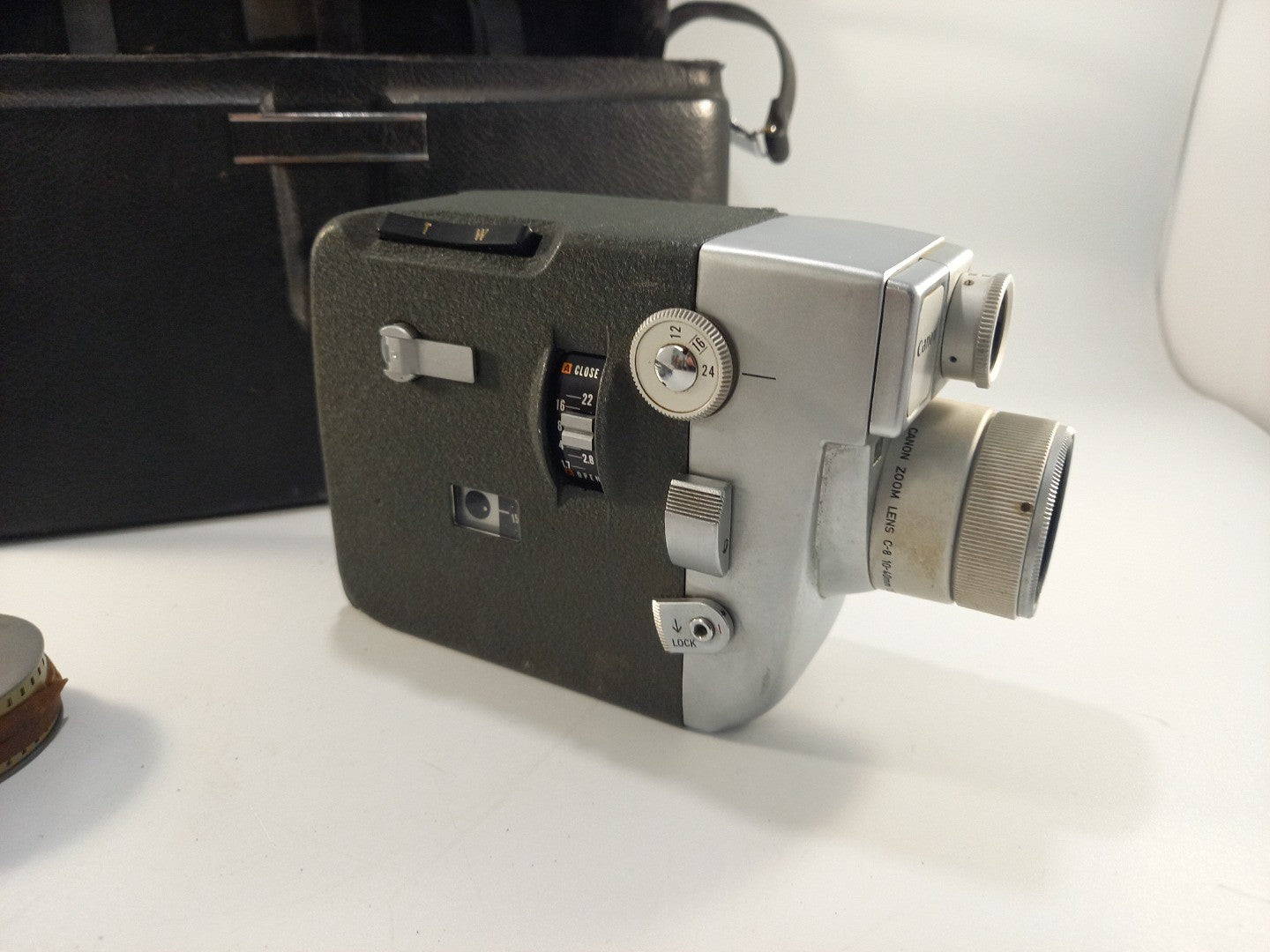

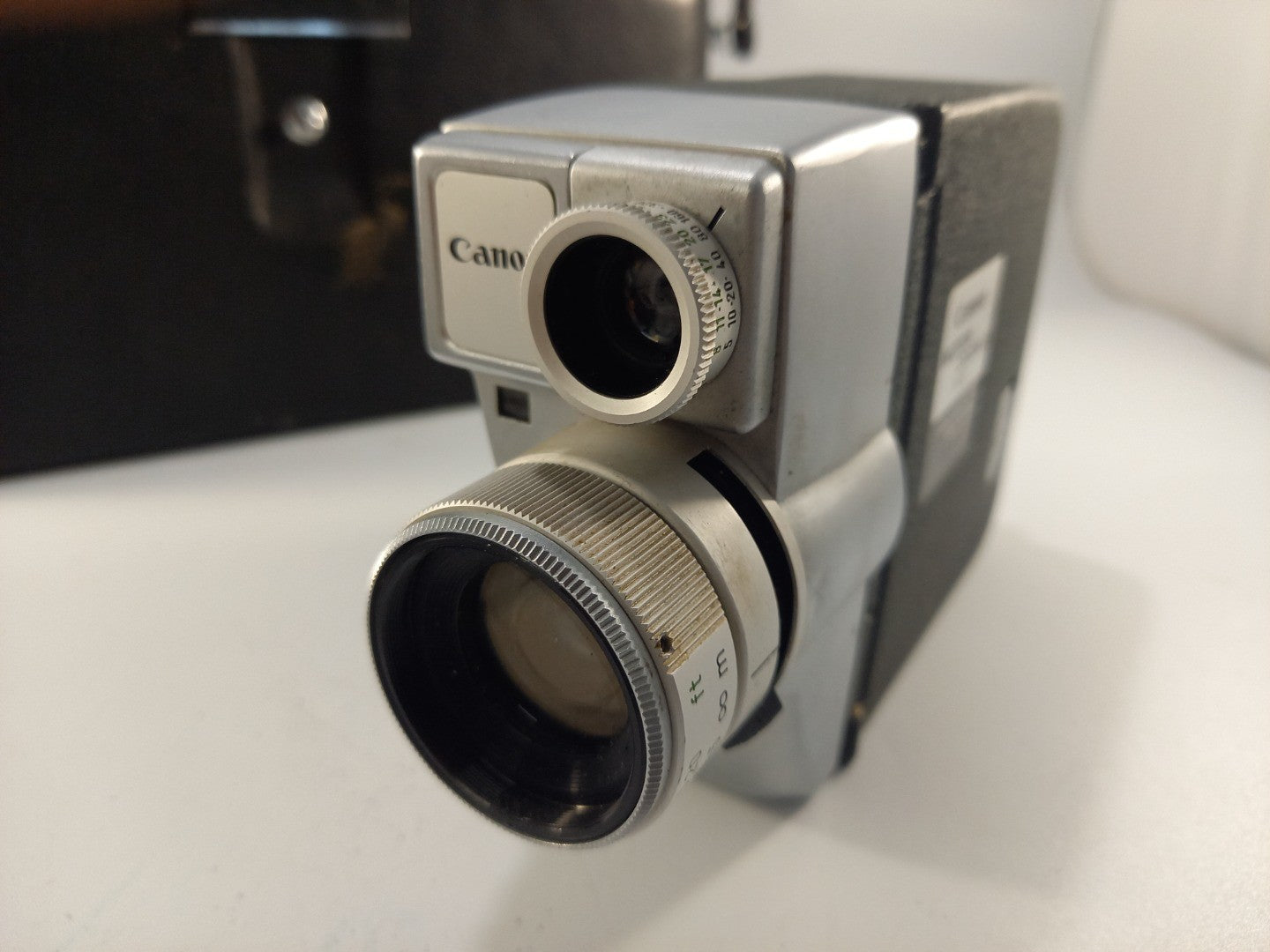

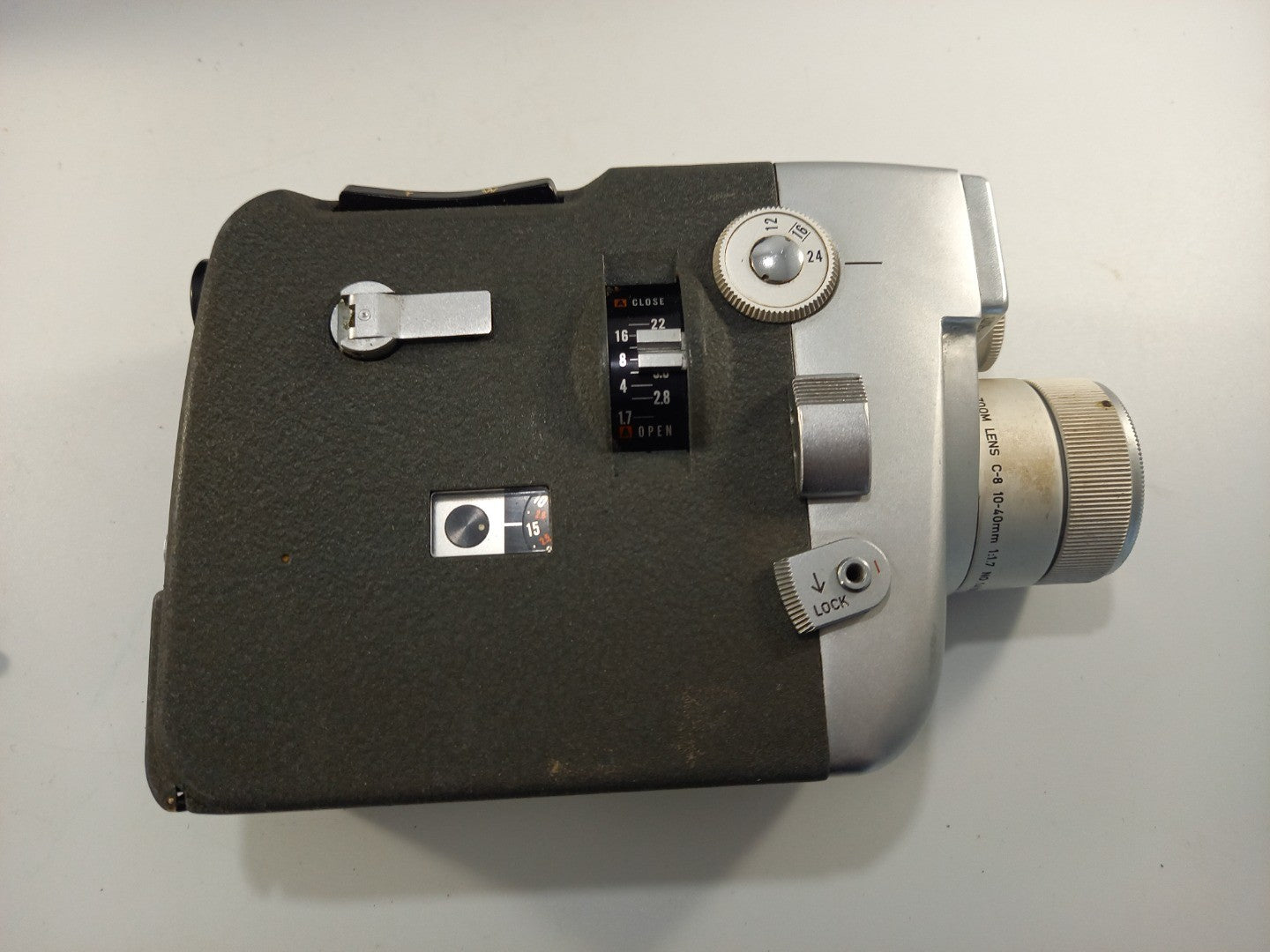

A rare and highly collectible Canon Motor Zoom 8 EEE cine camera, a classic from the early 1960s, in excellent cosmetic and working condition. Ideal for cine enthusiasts, collectors, or anyone looking to shoot on standard 8mm film. IMPORTANT - while the camera itself has no flaws, the battery magazine needs replacing as the current one is damaged/worn and does not allow for power to be transferred to the device.
Key Features & Specifications:
Produced in April 1962, this model marks an important stage in Canon’s engineering — it was one of their first to combine electric motor drive, automatic exposure (Electric Eye), and motorised zoom.

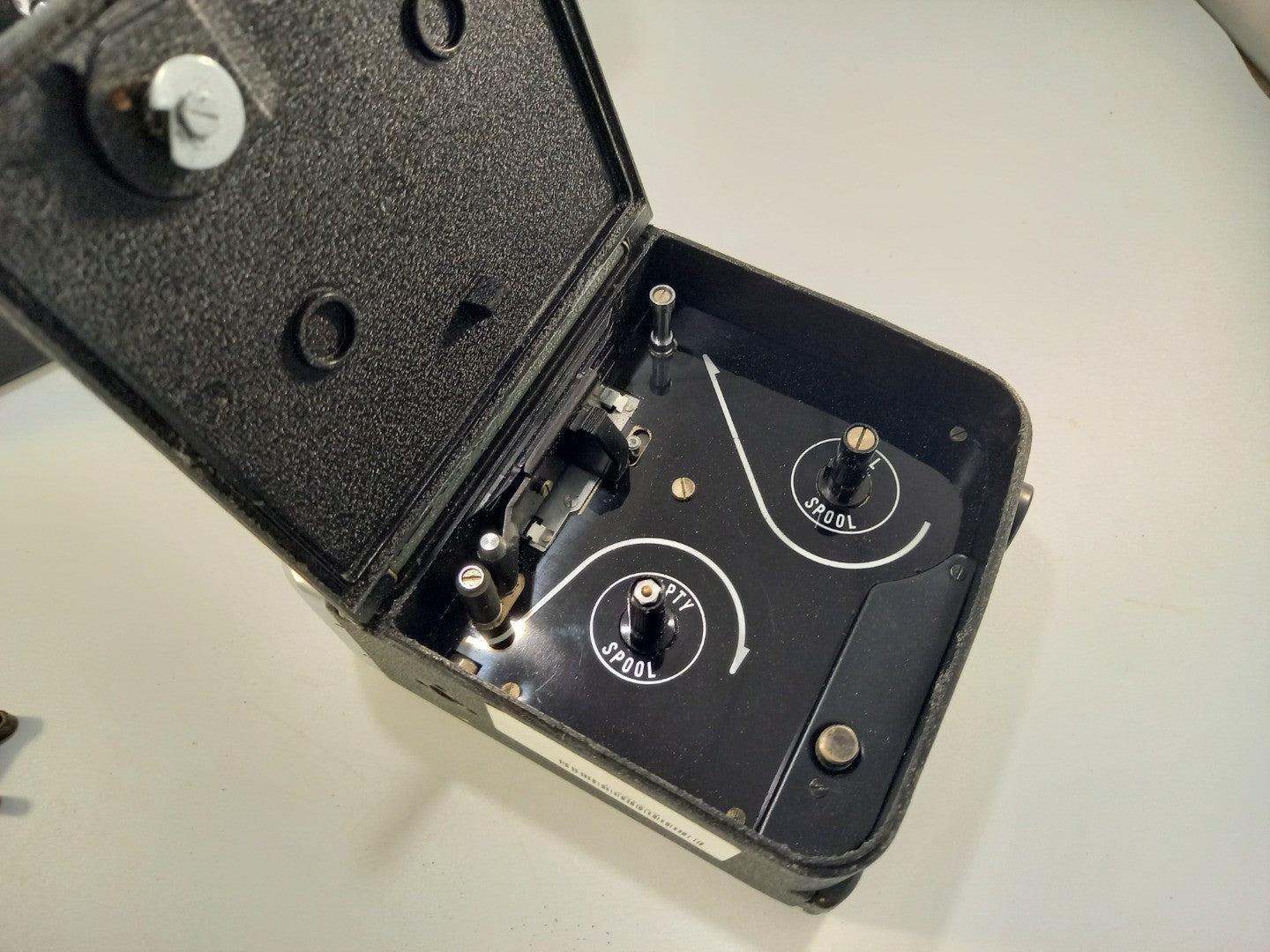

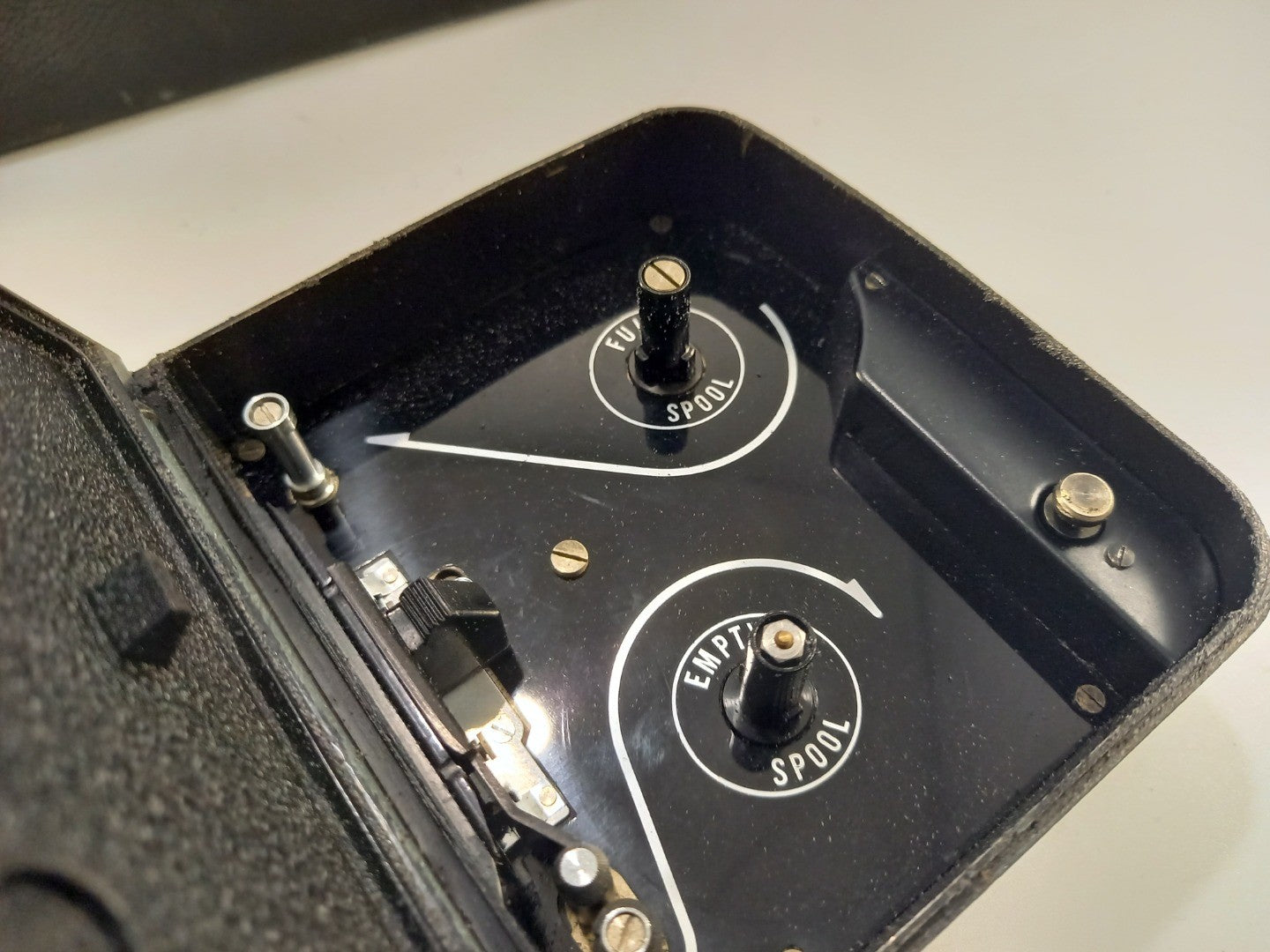

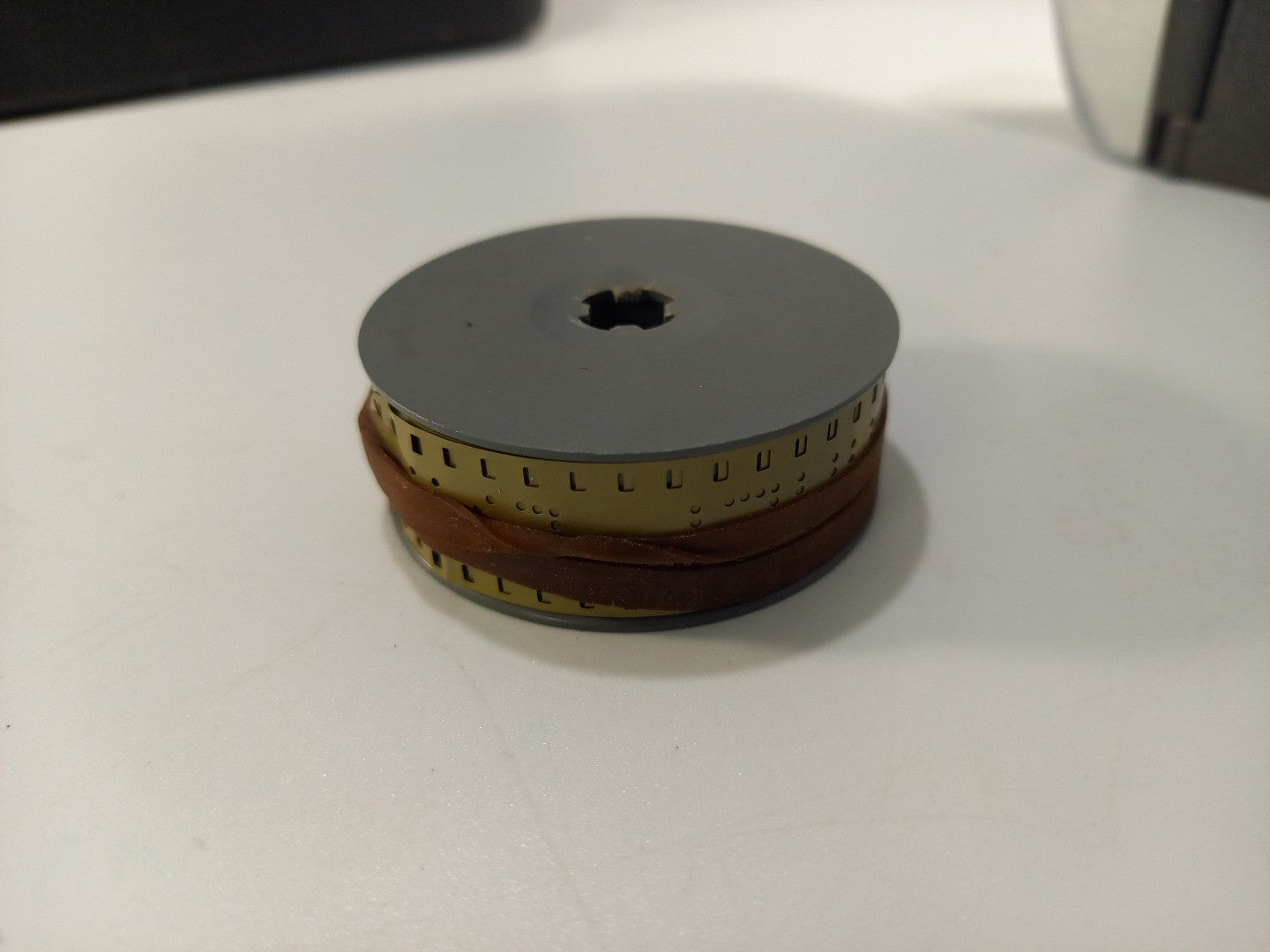

Film format: Regular 8 (Double-8), using 7.5 m reels.

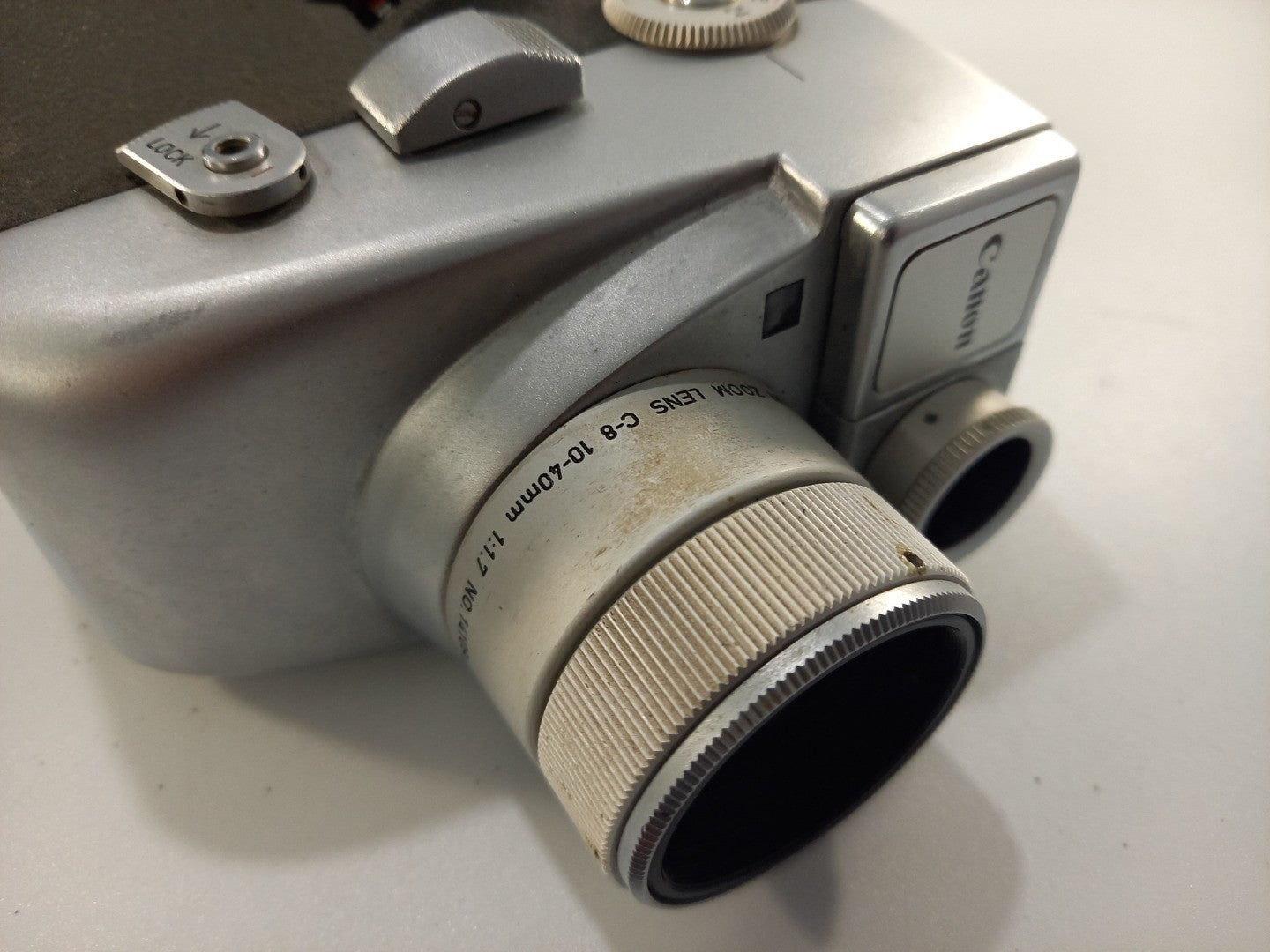

Lens: 10–40 mm f/1.7, 4× zoom, 12 elements in 7 groups.
With the included wide-converter, focal length becomes 6.5–26 mm, allowing a true wide-angle field of view.

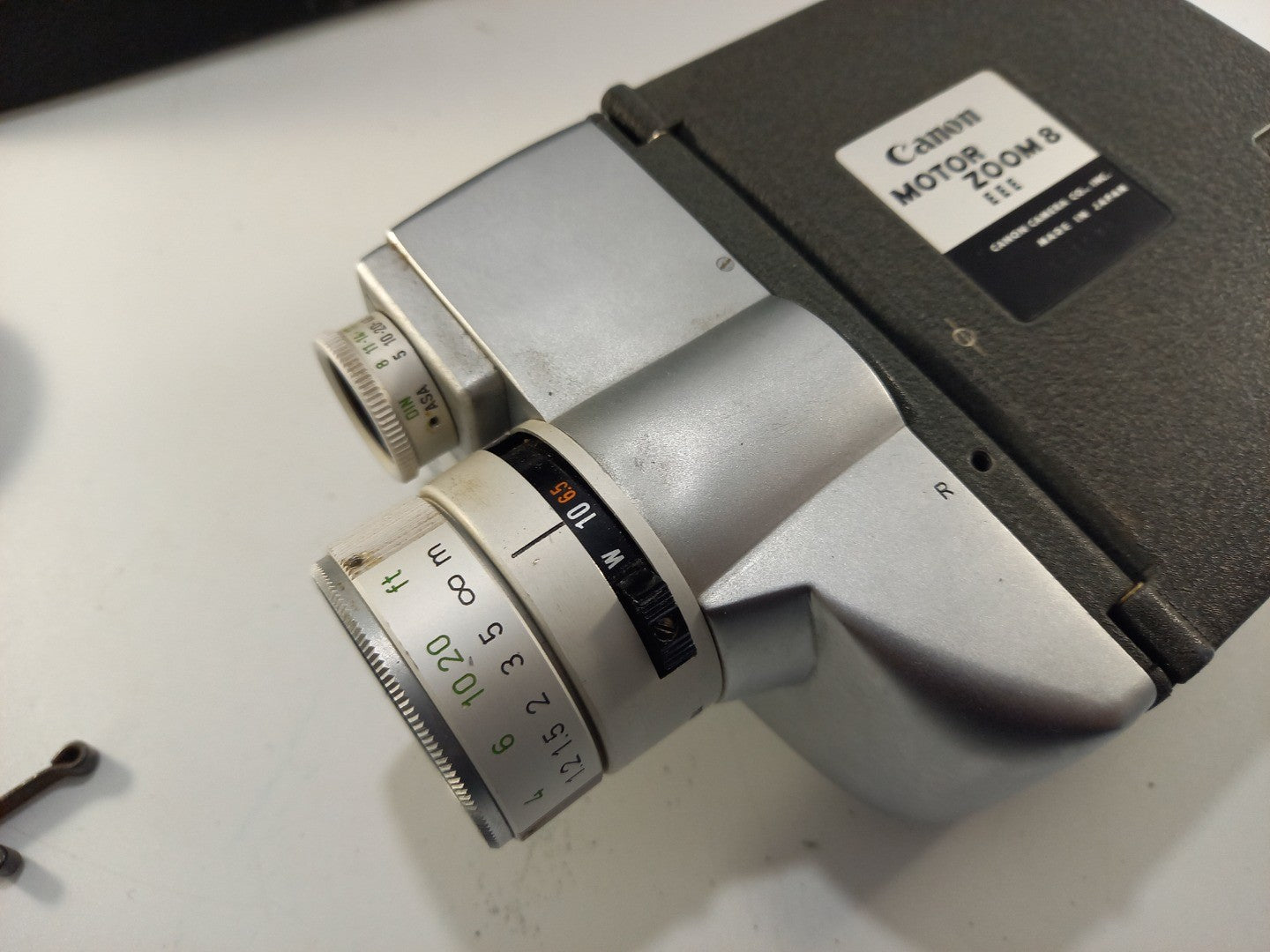

Focusing: manual, from 1.2 m to infinity, via rotation of the front lens group.
Zooming: motorised zoom, approximately 4 seconds from 10 → 40 mm; also supports manual zooming.
Exposure: fully automatic aperture control via a CdS (cadmium sulphide) meter, coupled to the filming speed (EE = Electric Eye).
Metering range: 10 – 80,000 cd/m², with working range across f/1.7–22 and film ISO from 5 to 320.

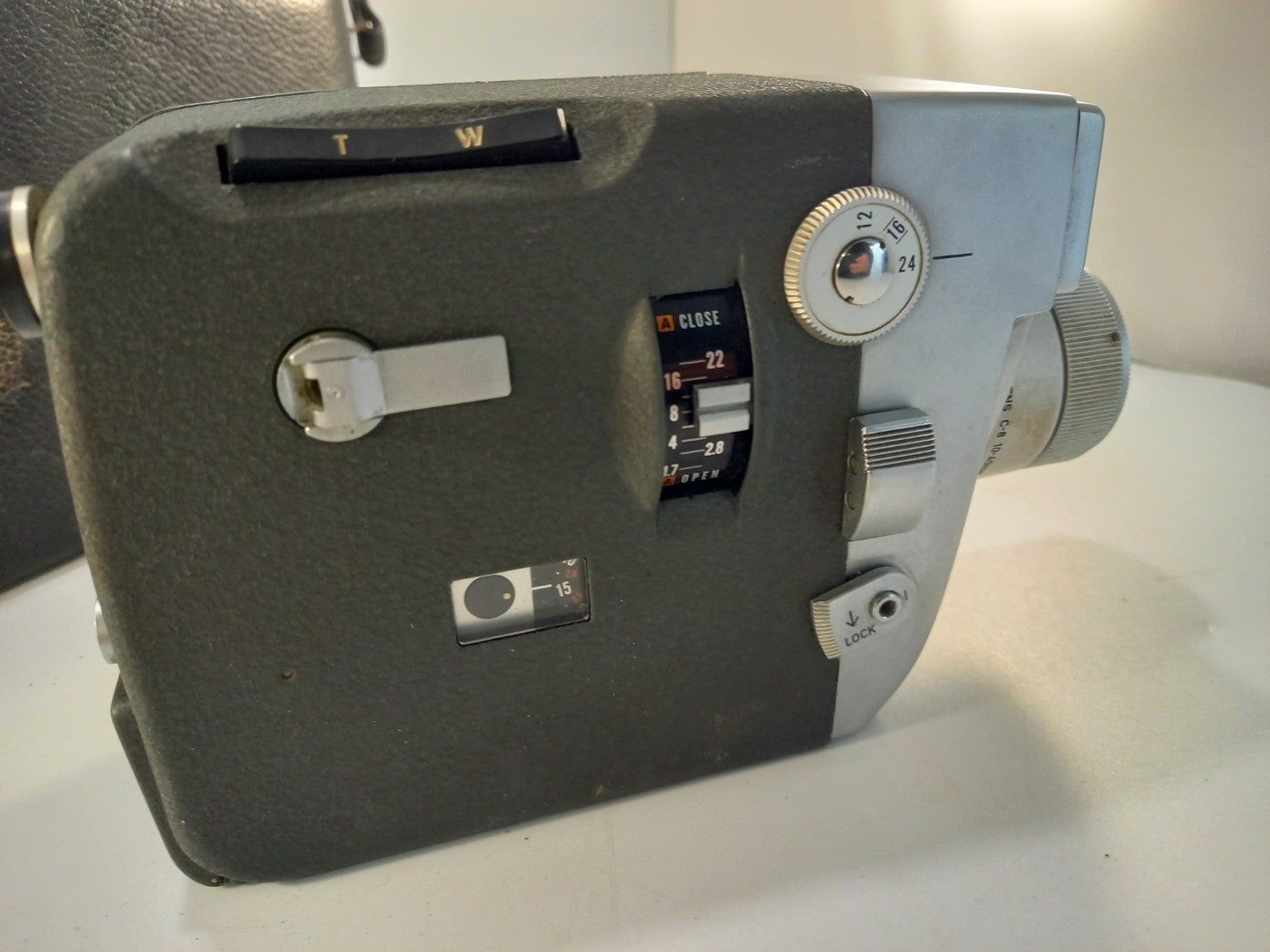

Frame rates: 12, 16, 24 fps, plus single frame.
Drive: powered by a micro-motor, allowing continuous filming over full reel length.
Power: uses 4 × AA (1.5 V) batteries for the motor drive.
Meter power: originally designed for a 1.3 V M-N mercury cell for the CdS meter.
Rewind: manual crank for accurate rewinding and film counter reset.
Shutter: 165° shutter opening.
Size: 56 × 110 × 172 mm; Weight: approx 1,160 g (body only).

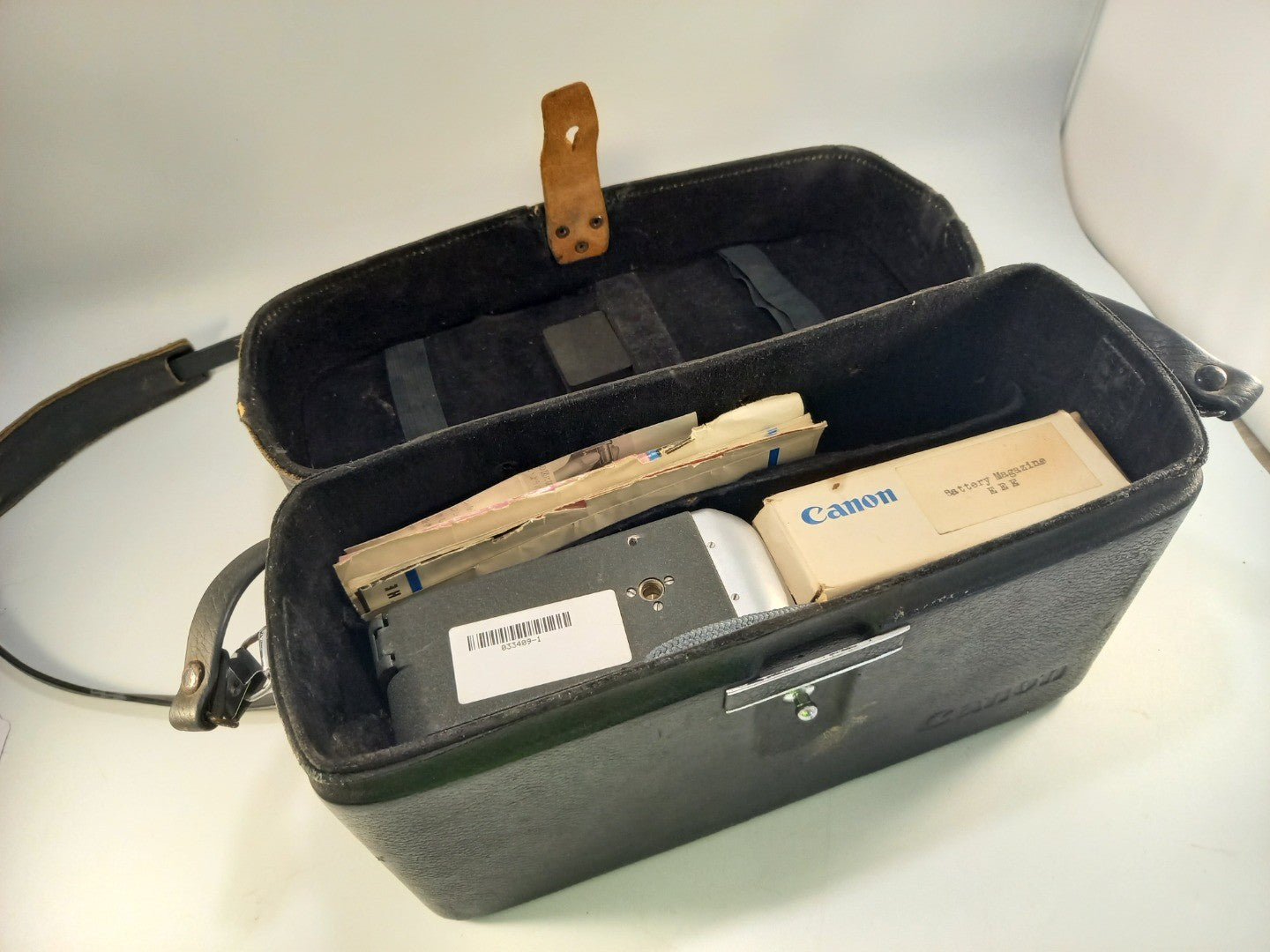

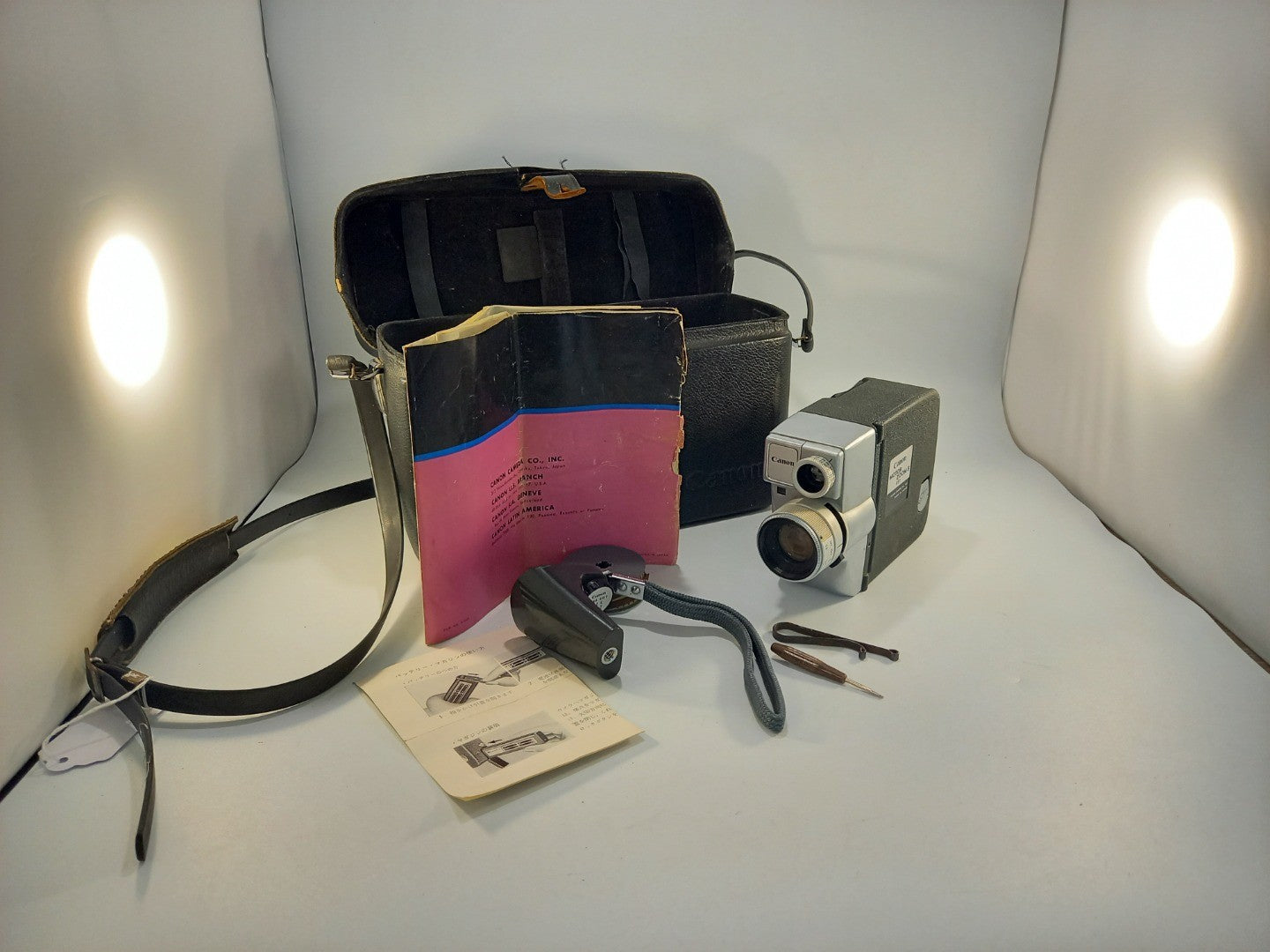

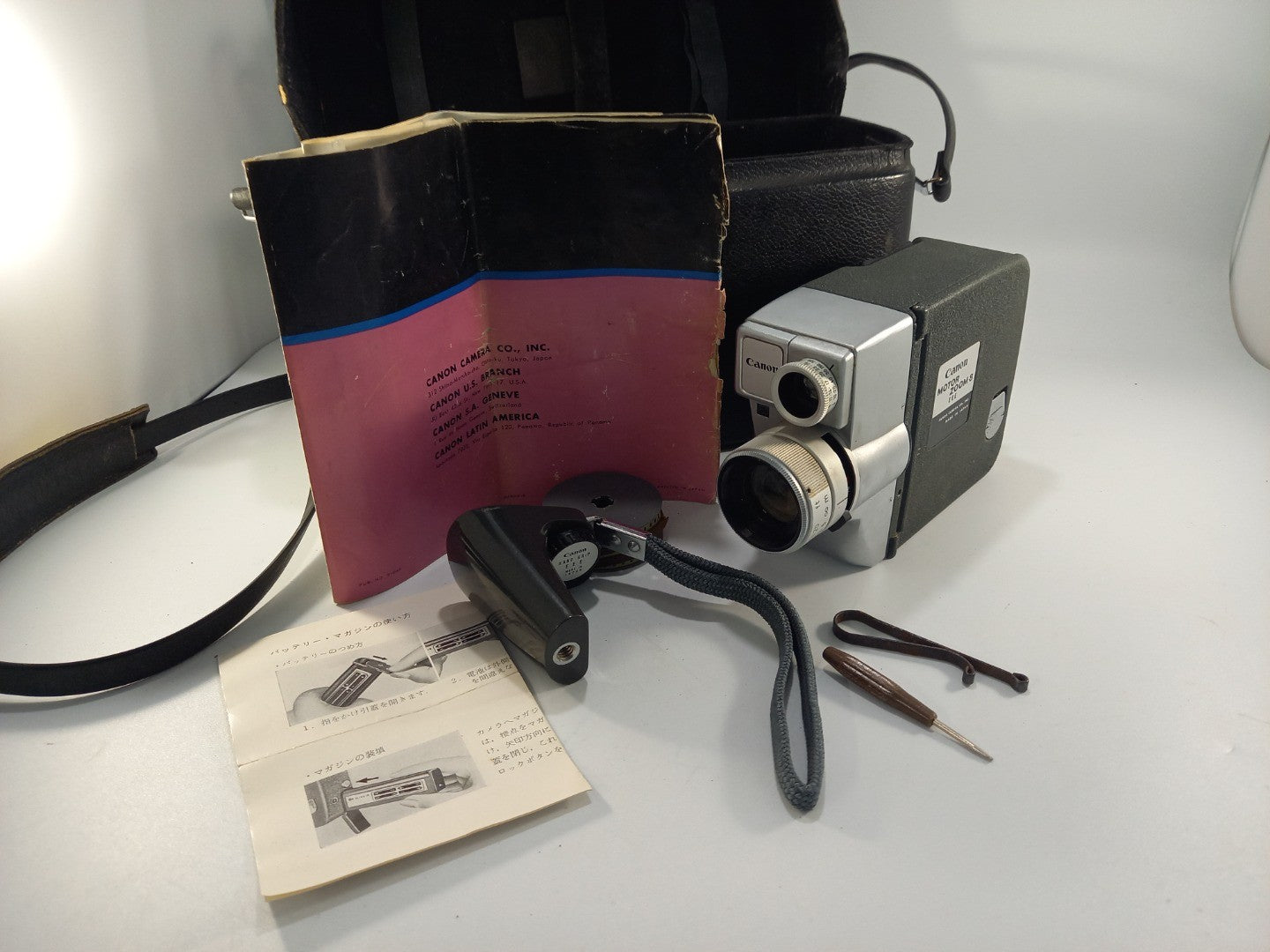

Included Accessories:

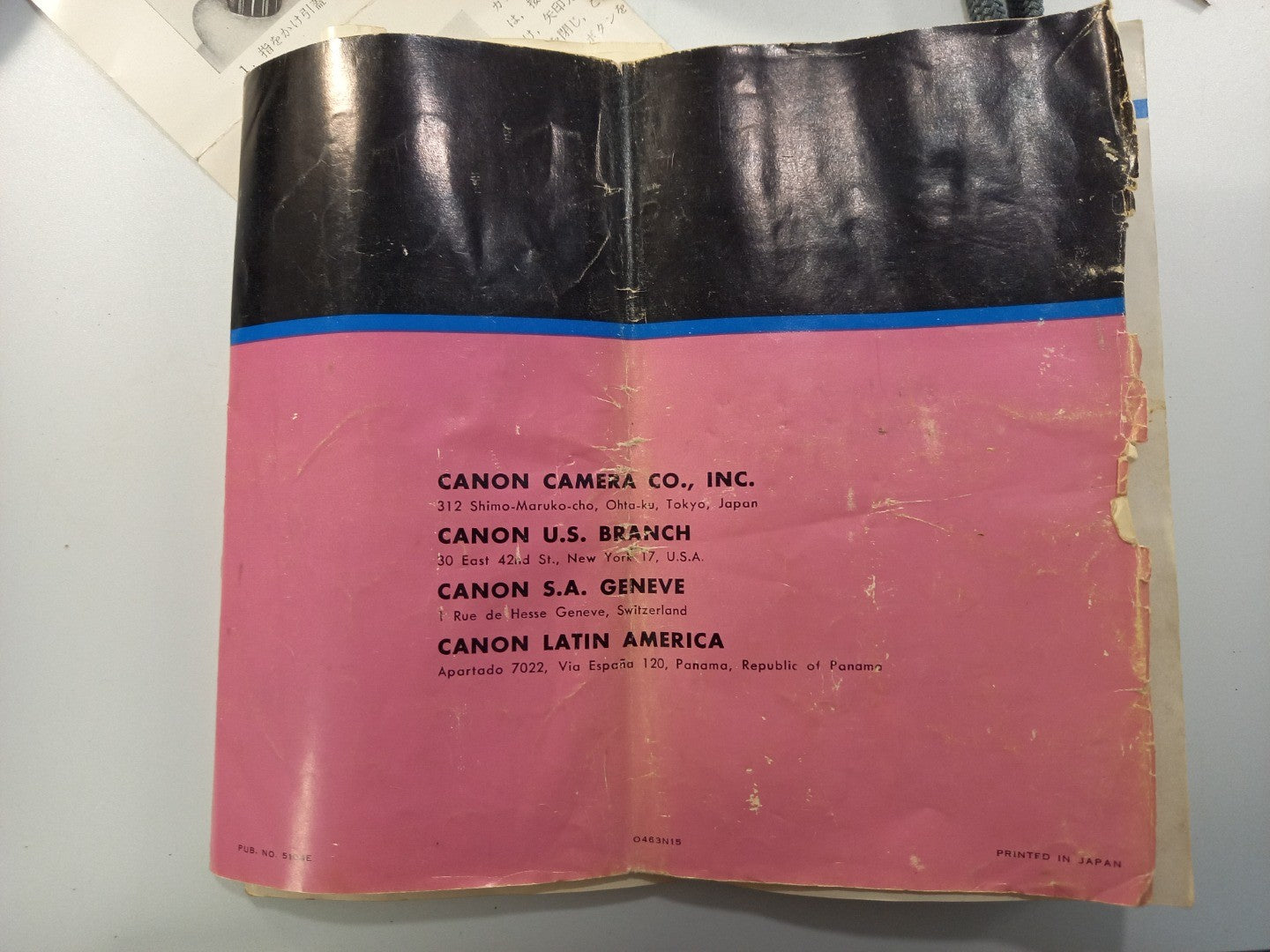

Original documentation/manual (36-page user manual in English)

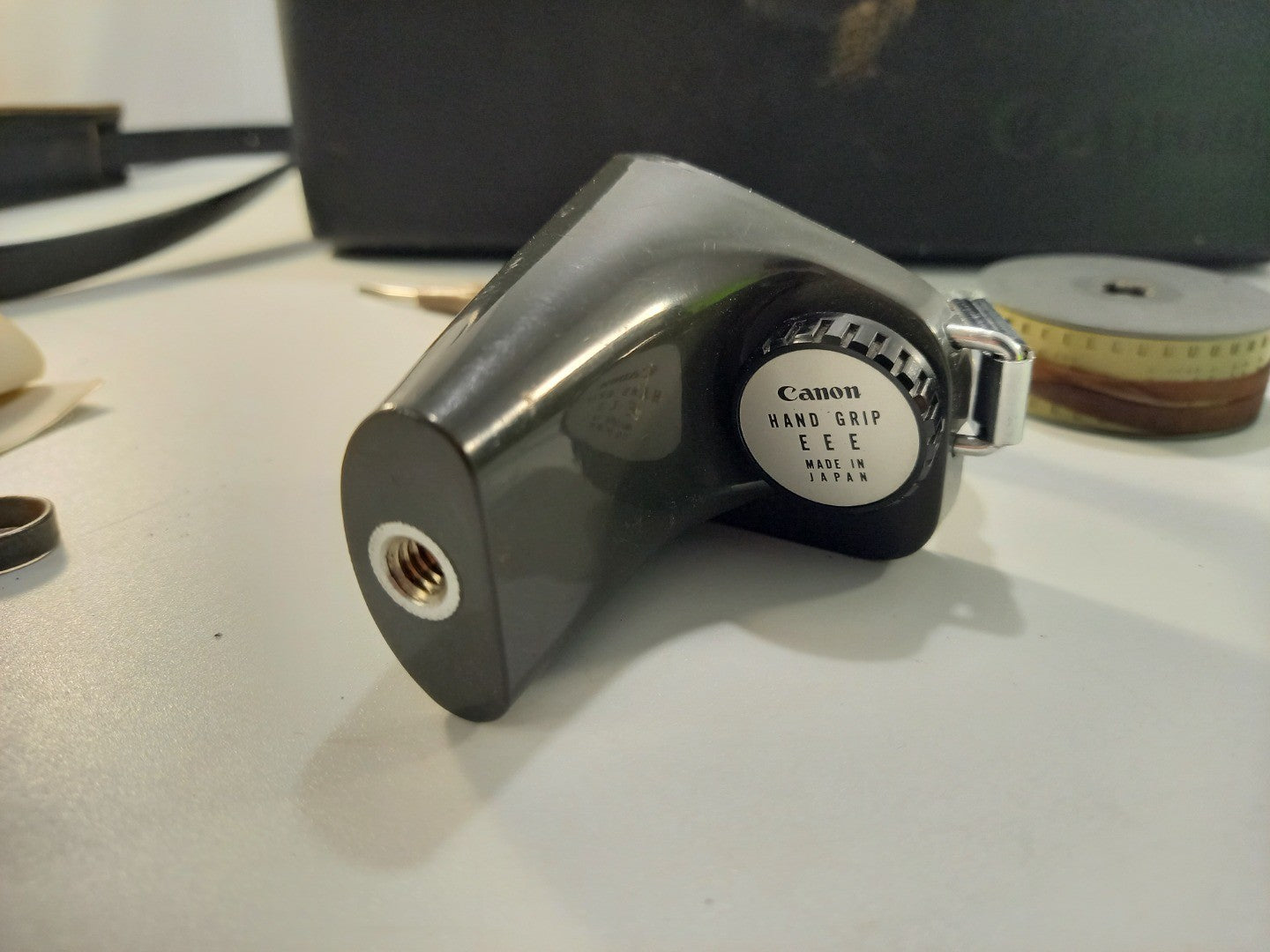

Detachable camera grip / hand grip

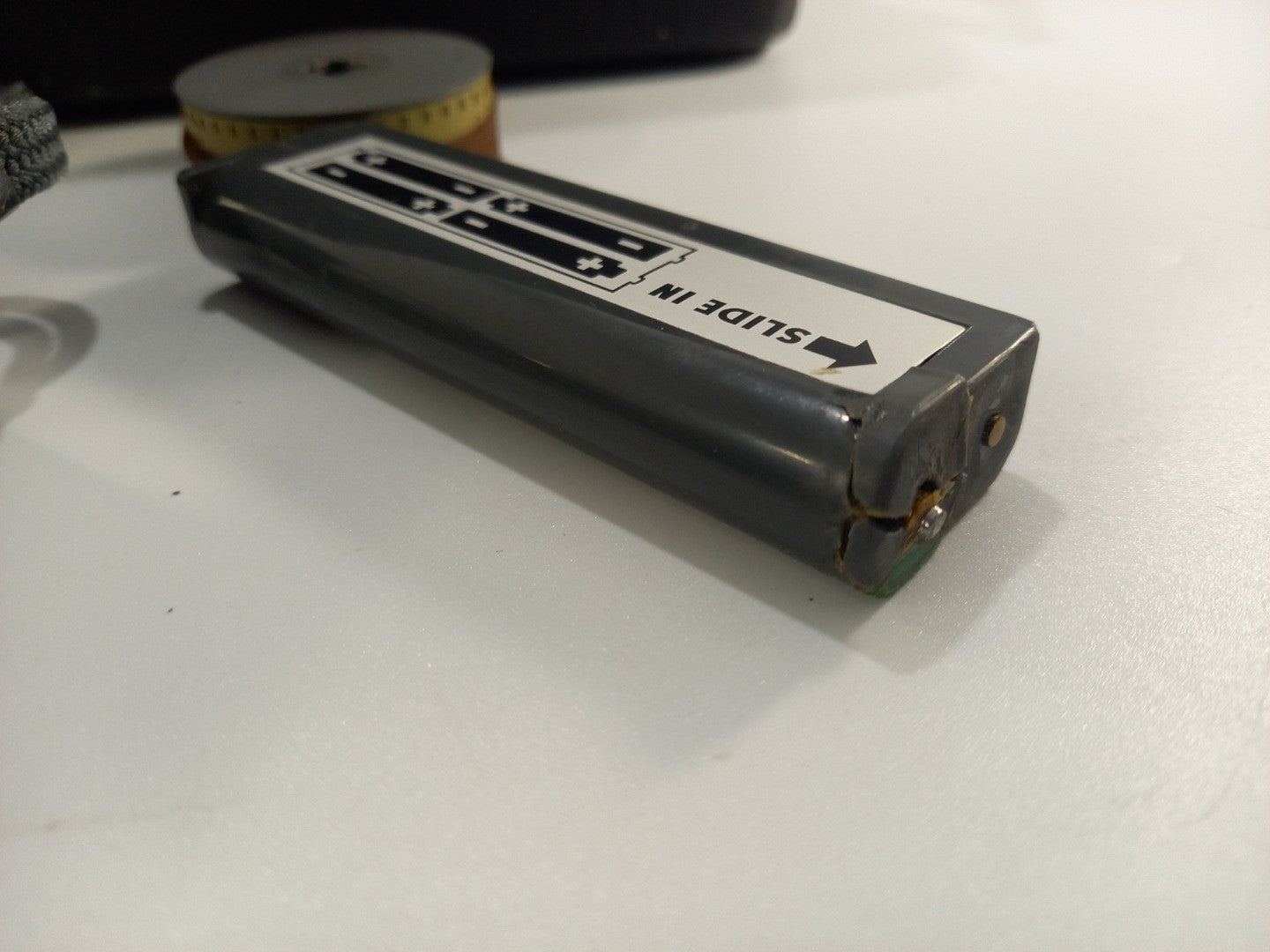

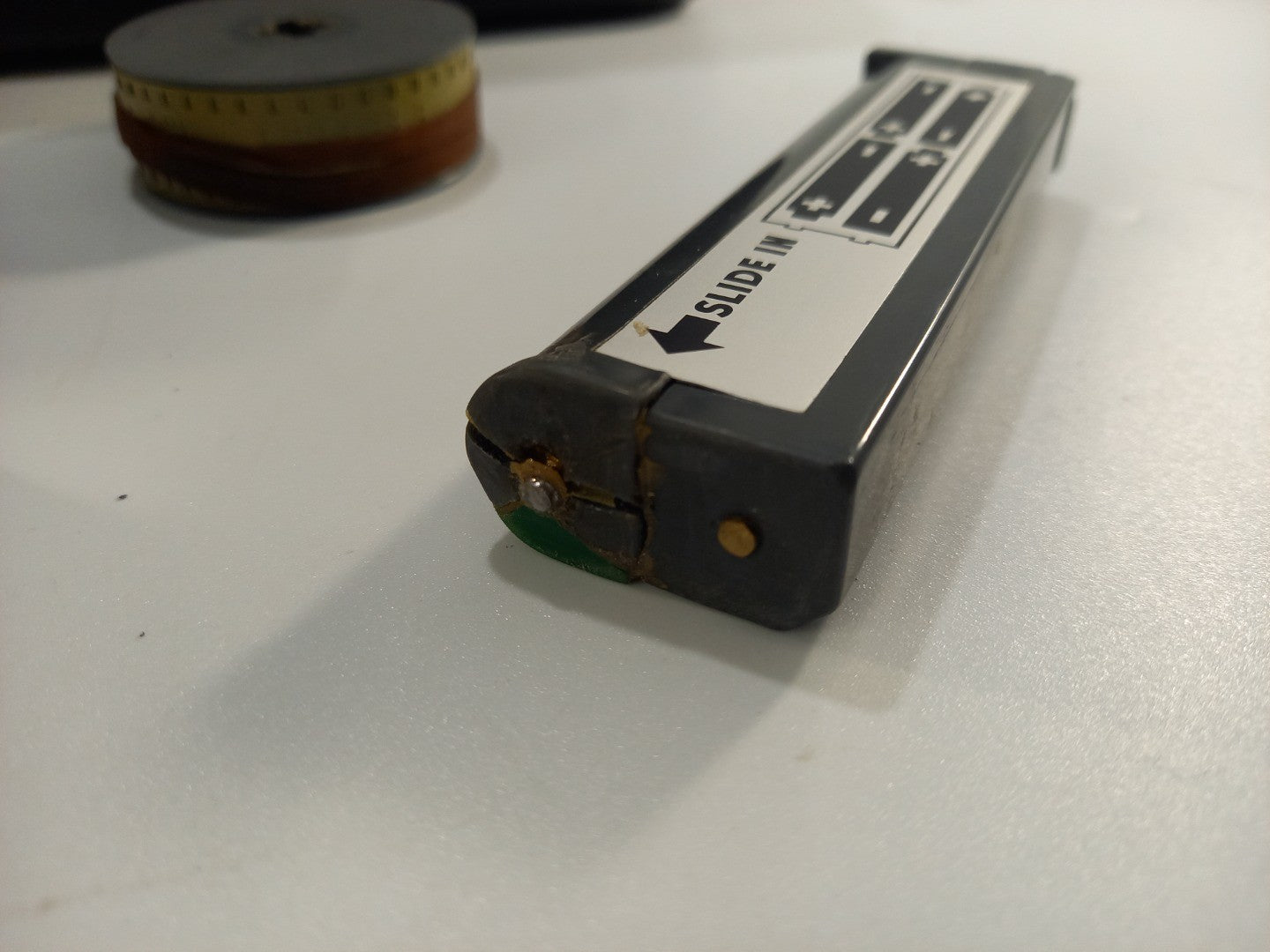

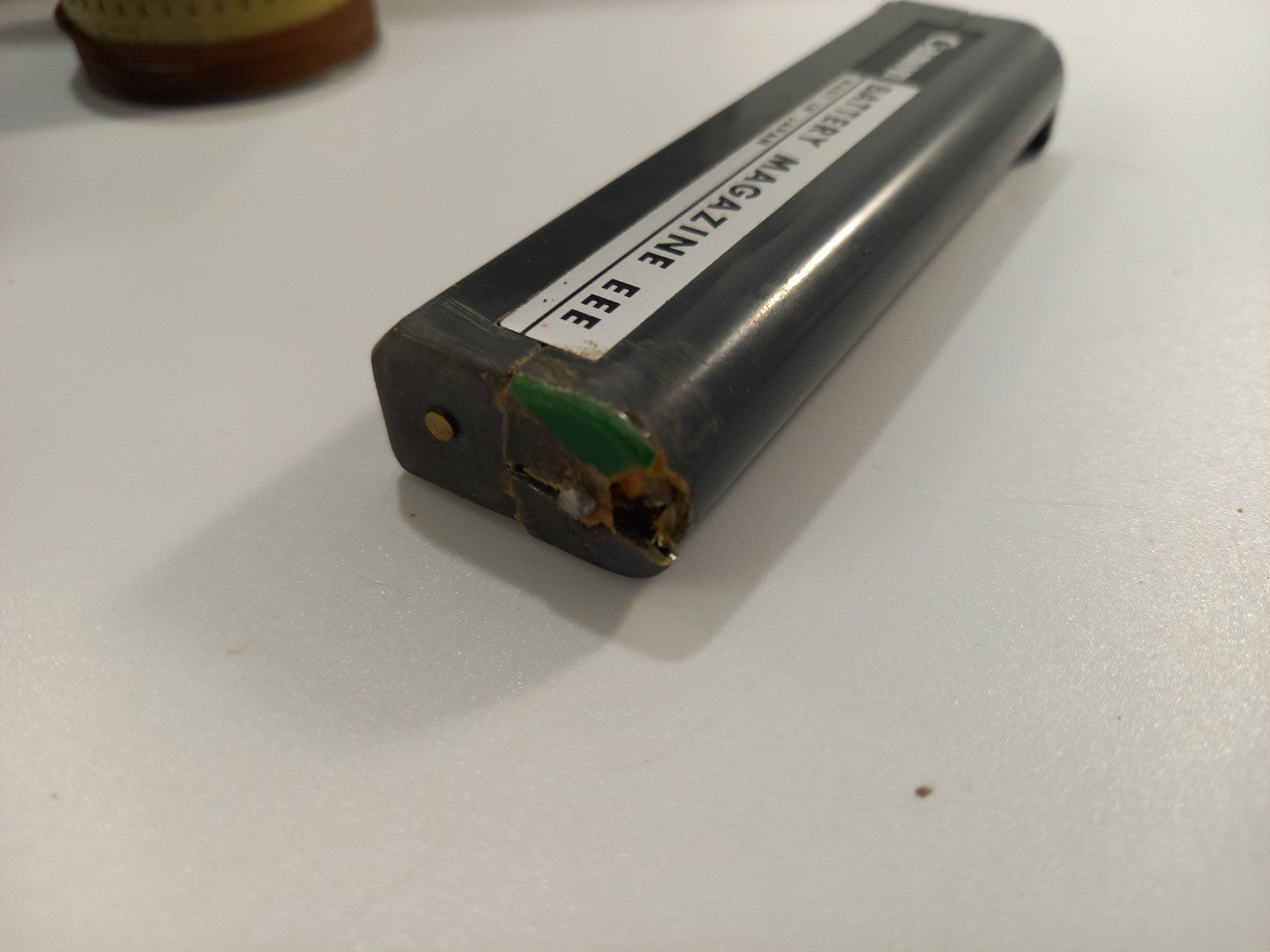

Battery magazine (for the 4 × AA batteries) - NEEDS REPLACING

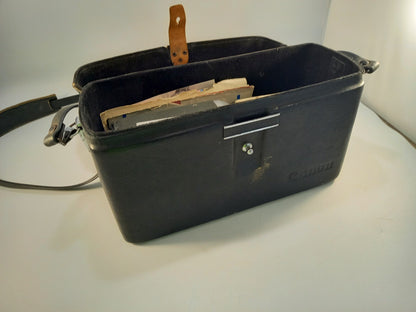

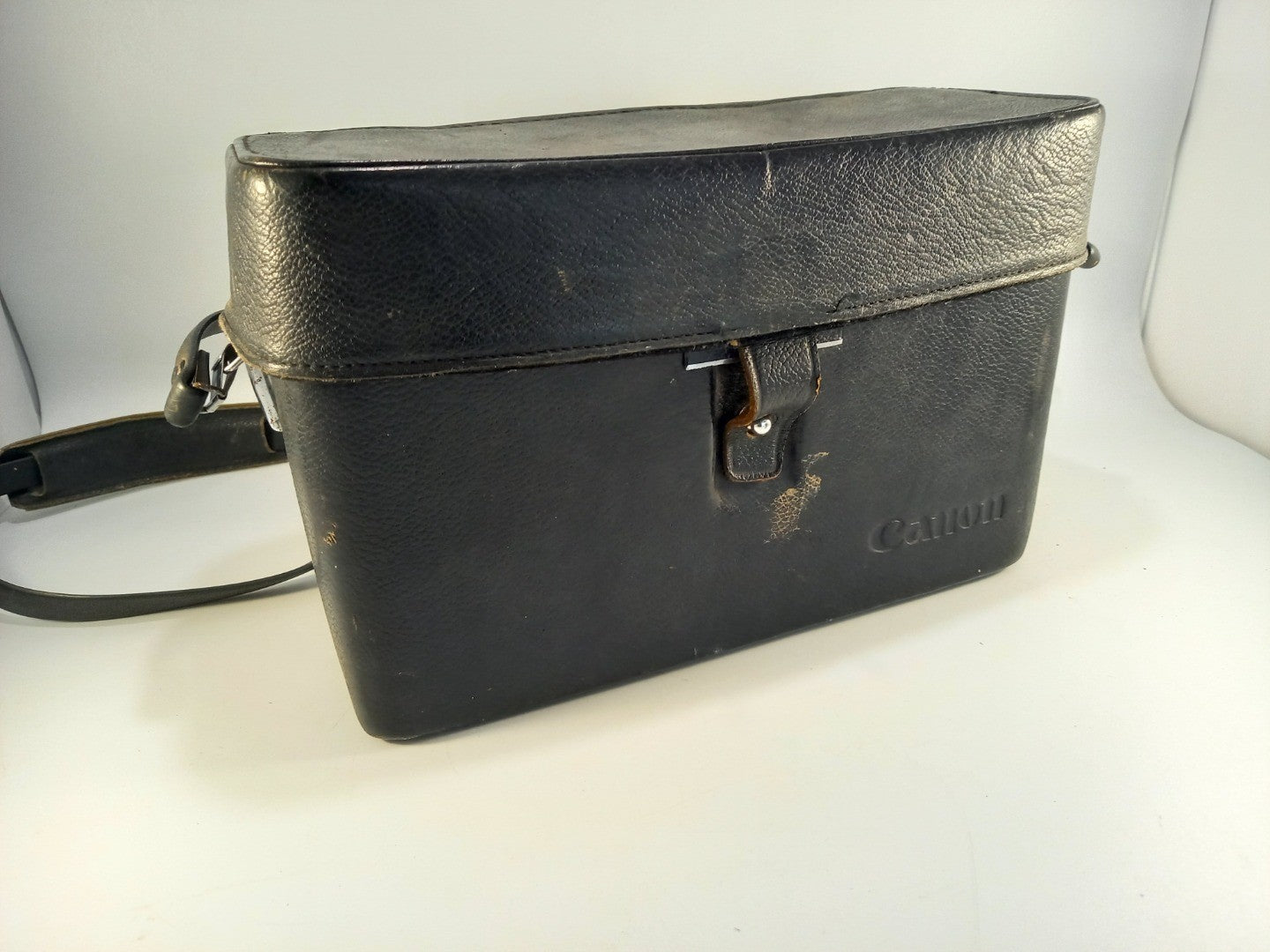

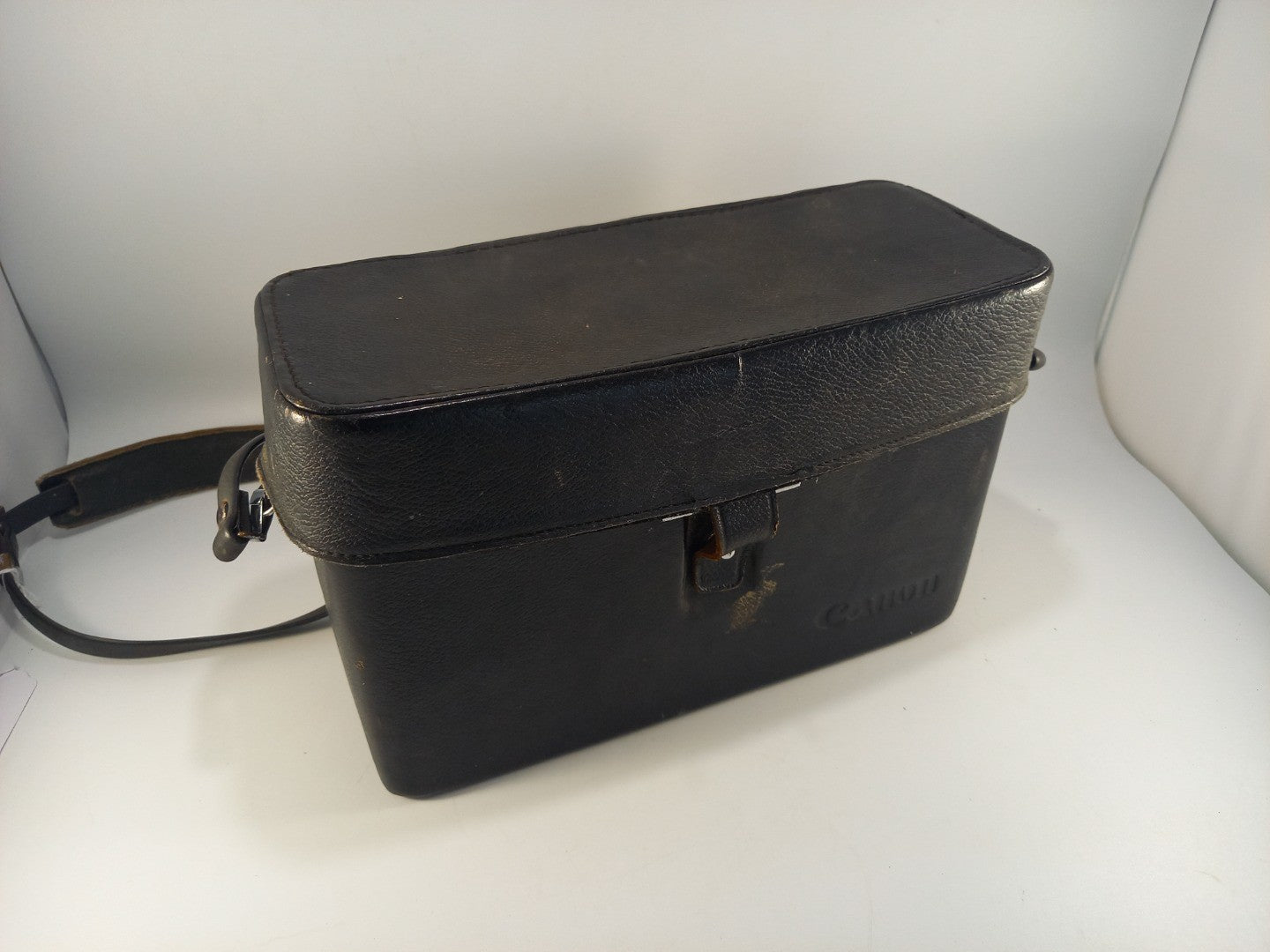

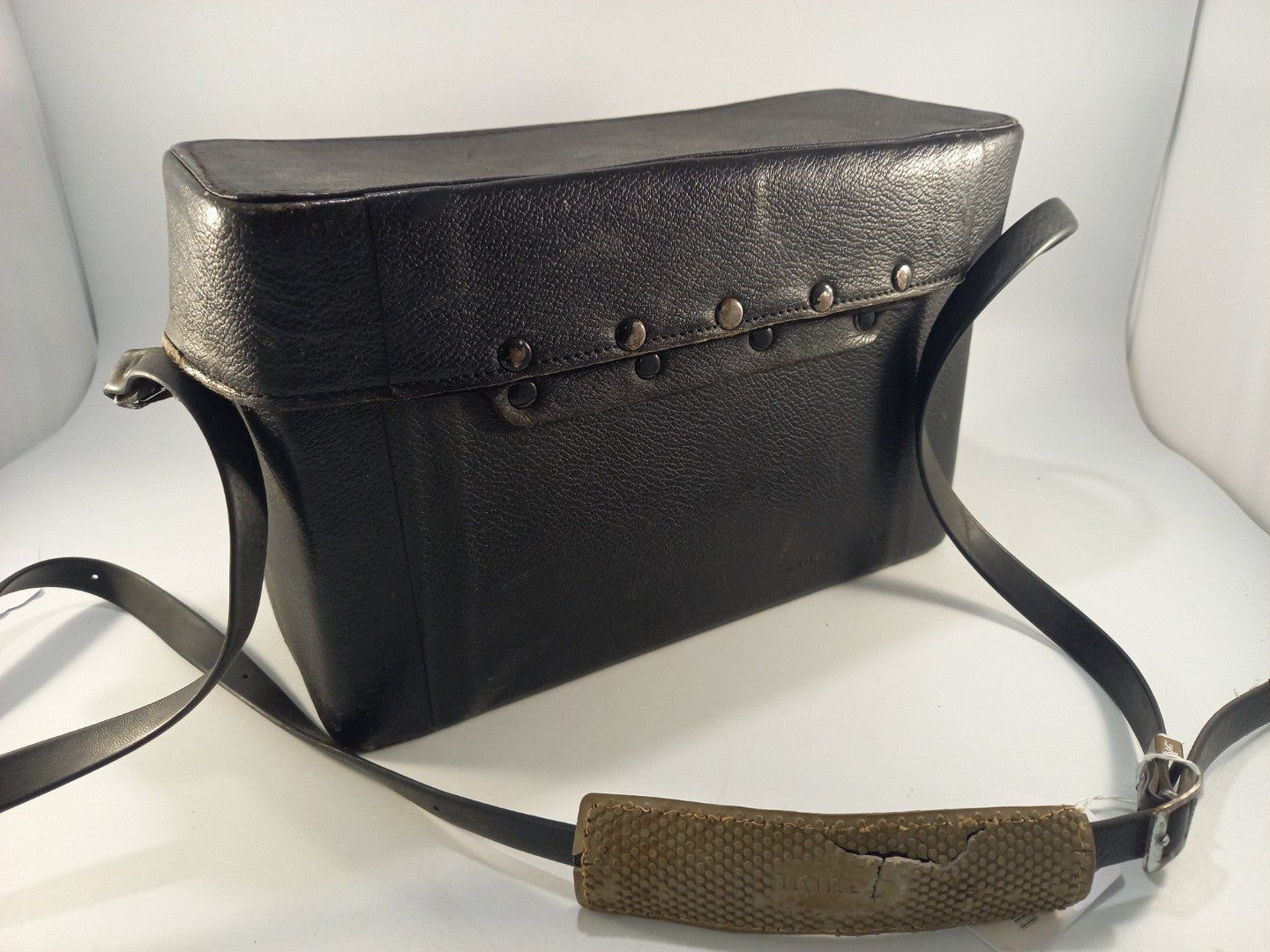

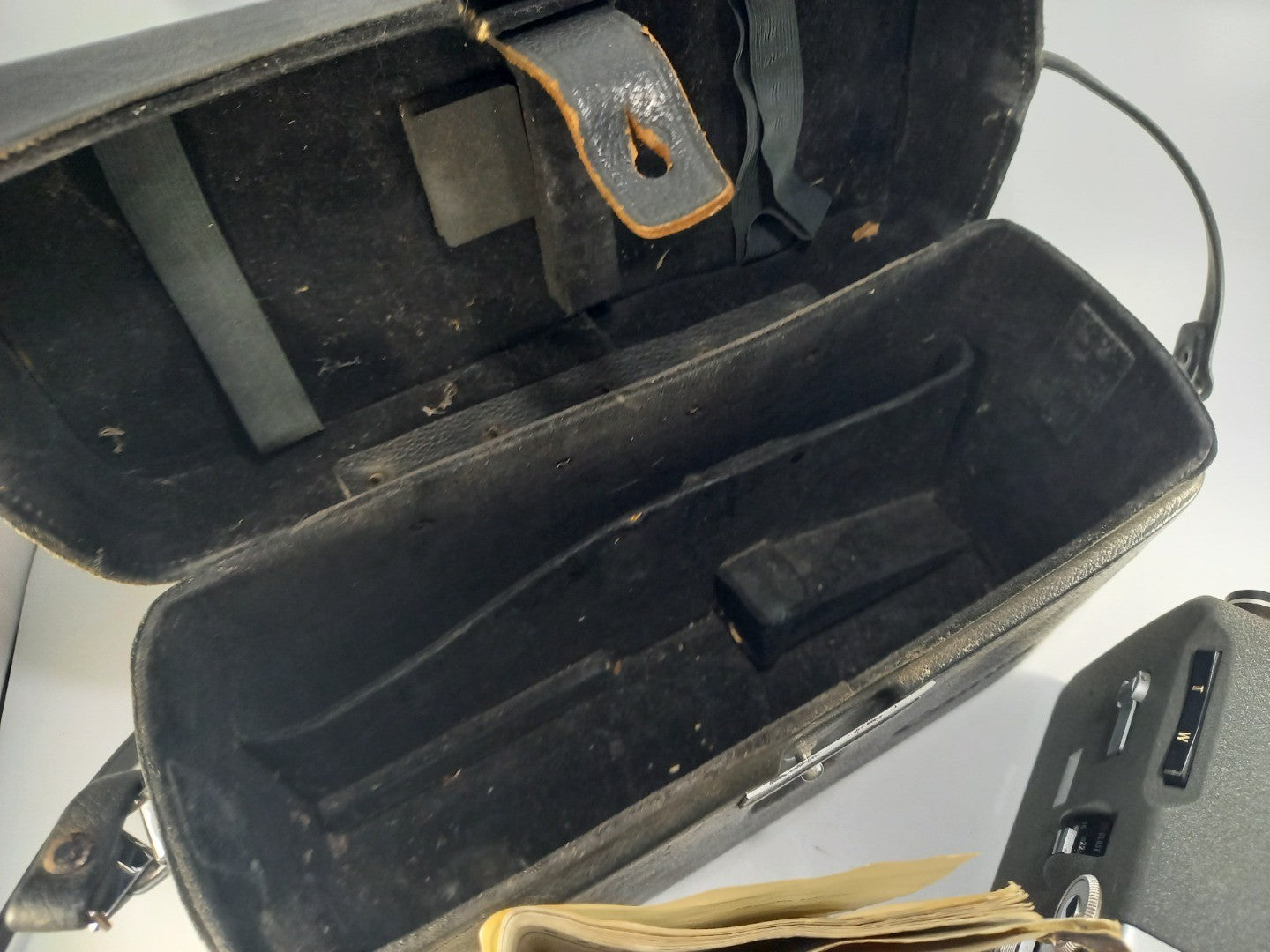

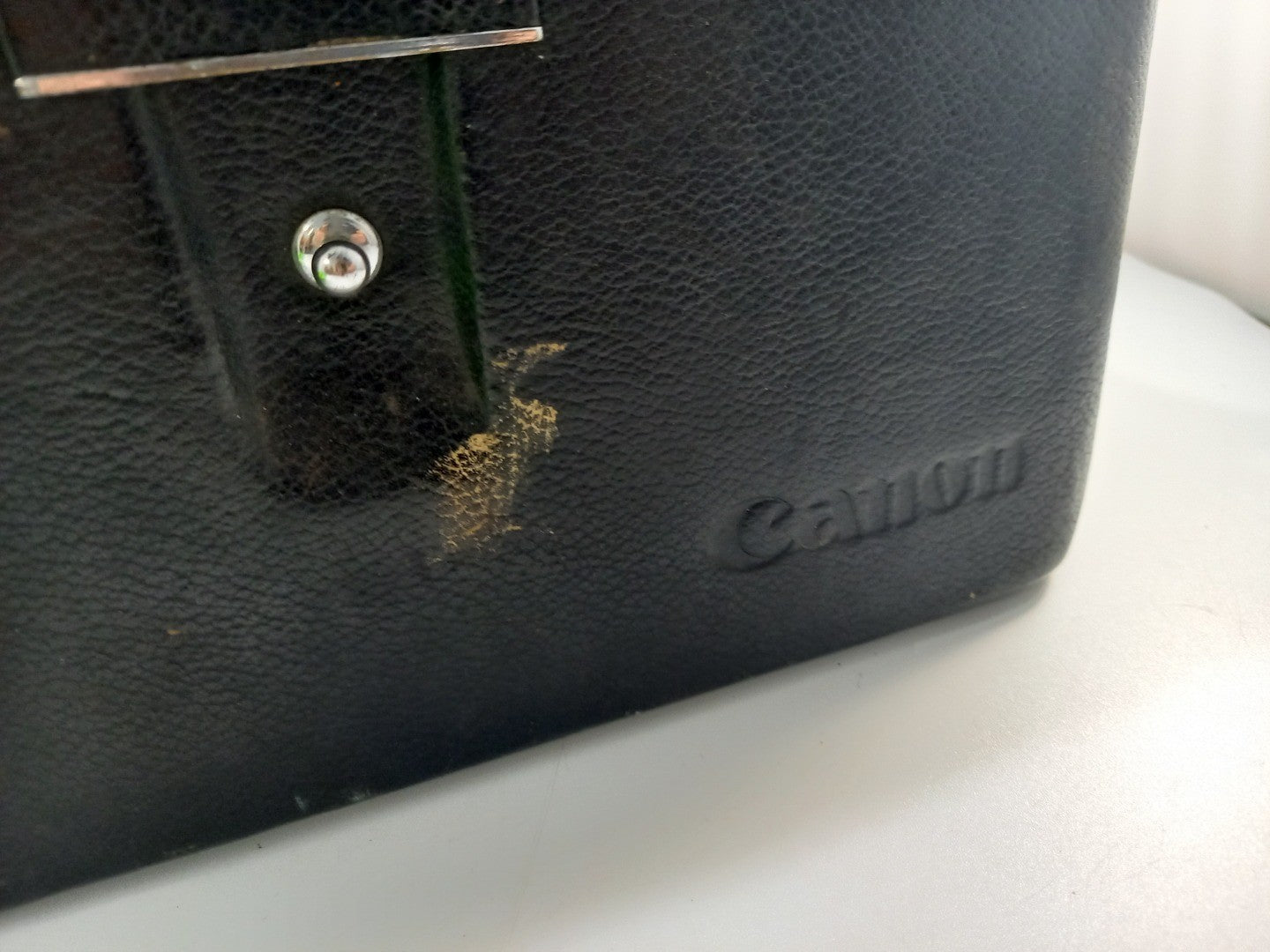

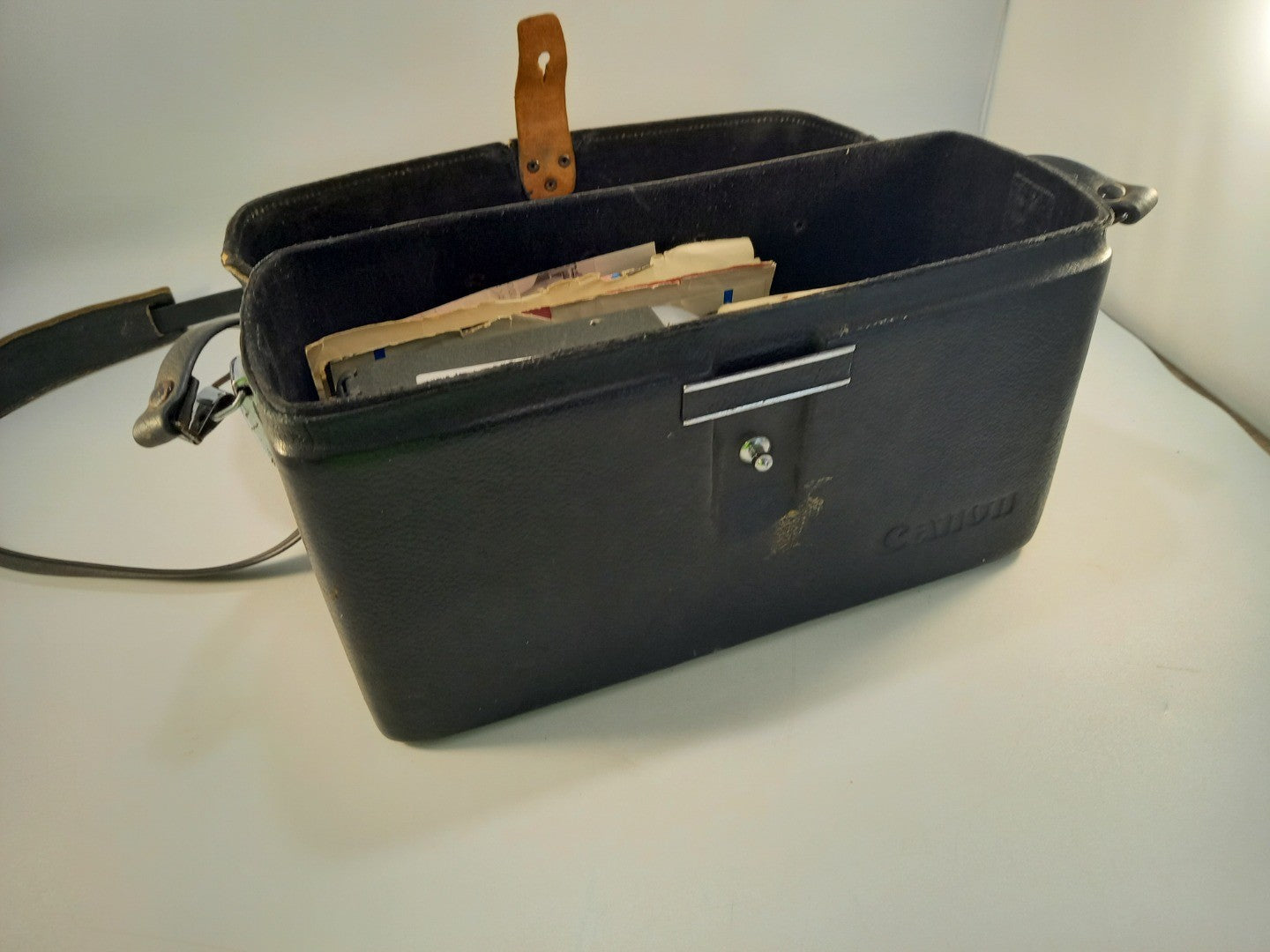

Leather carrying case
